Model Gateway, Routing & Data Residency

TL;DR: All AI traffic flows through one provider-neutral gateway (/v1/messages, /v1/responses, four wire protocols) that rewrites models, enforces per-role access with 403s, refuses unlisted models, applies quota windows, tracks latency against an SLO, and — via governance metadata on providers and routes — refuses to send classified traffic to a provider that retains data.

One gateway, any provider

The gateway speaks four wire protocols behind /v1/messages and /v1/responses, so any Anthropic-SDK or OpenAI-compatible client points at it unchanged. Routes match on model pattern and can rewrite via upstream_model — a client asking for claude-* can be transparently served by a different backend without any application change. Substitution across Cerebras, OpenAI, and Gemini is proven in live deployments.

Model access control

Access to models is a gateway_route ACL matrix, administered in the admin UI and granted per role. A request for a route the caller is not entitled to is refused with HTTP 403, the denial is audited, and grants are revocable with immediate effect.

Credentials

Personal access tokens carry an optional expiry, a prefix (identify a leaked token without exposing it), and immediate revocation from /admin/devices/pats. Note that a key is not its own governance subject — budgets and quotas bind to the owning user and the instance, not to the individual key (see the roadmap).

Shadow-AI posture

The gateway runs with allow_unlisted_models: false: a model that is not explicitly configured cannot be called, whoever asks. Combined with route entitlements and the full audit trail, everything that touches the gateway is governed. Traffic that never touches the gateway — someone calling a provider directly from their laptop — is a network-control matter for corporate IT, outside any application platform's reach.

Latency SLOs

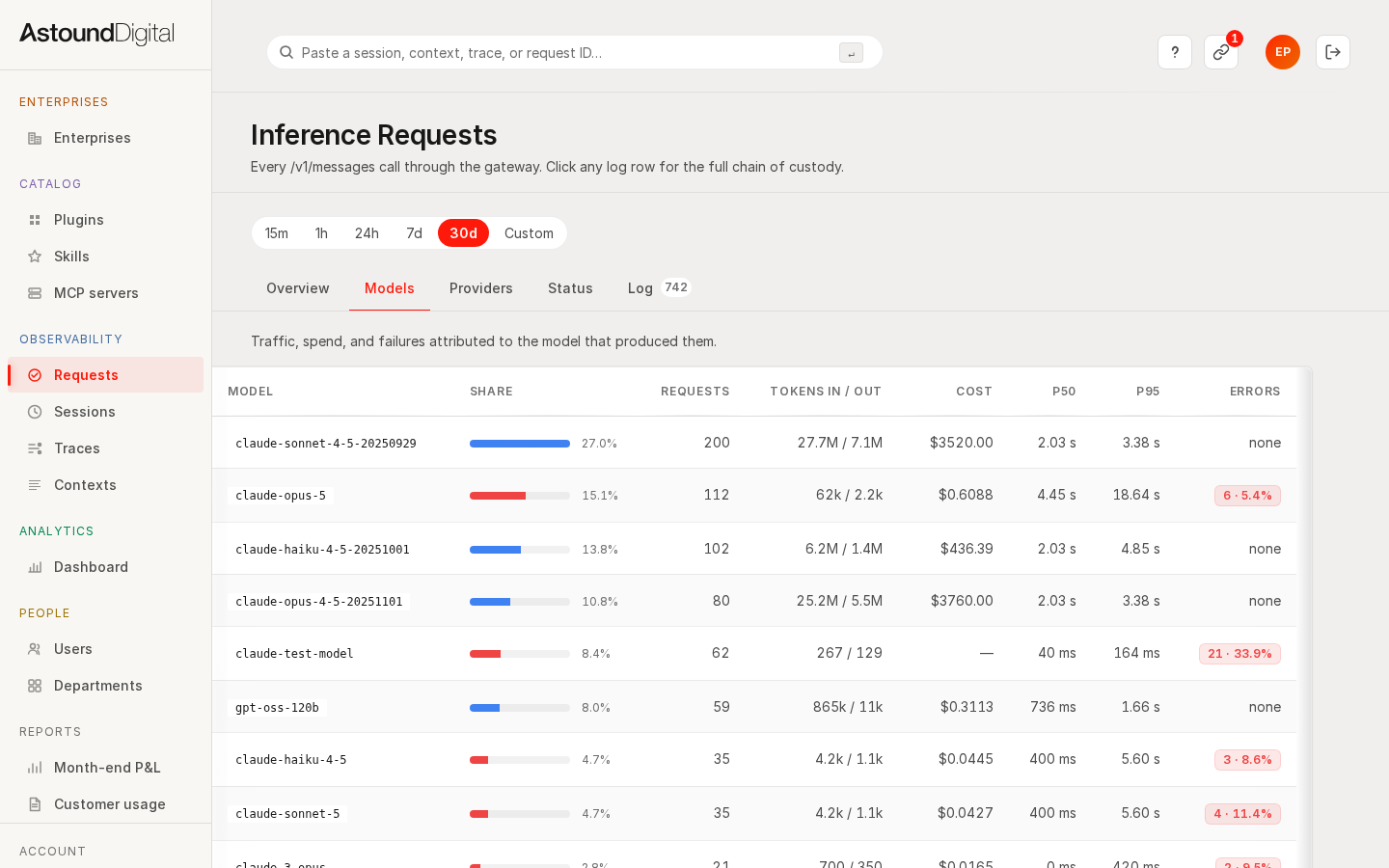

A configurable latency SLO threshold is tracked per the reporting views: breach percentage over the period, alongside p50 and p95 latency and per-model latency data. Per-use-case SLO taxonomies and error-budget alerting are planned — see the roadmap.

Quota windows

Rate limiting ships configured and enabled with sensible defaults: quota windows on requests, tokens, and cost, applied per user or instance-wide, with role-tier multipliers. The defaults are a starting point — tune the windows to your traffic profile from the gateway configuration.

Private and self-hosted endpoints

Any OpenAI- or Anthropic-compatible private endpoint is a configuration entry, not a code change. Declaring a provider with the Backend surface keeps it un-advertised — it serves routes without appearing in any public model listing — and every route is validated at boot.

Data classification & residency

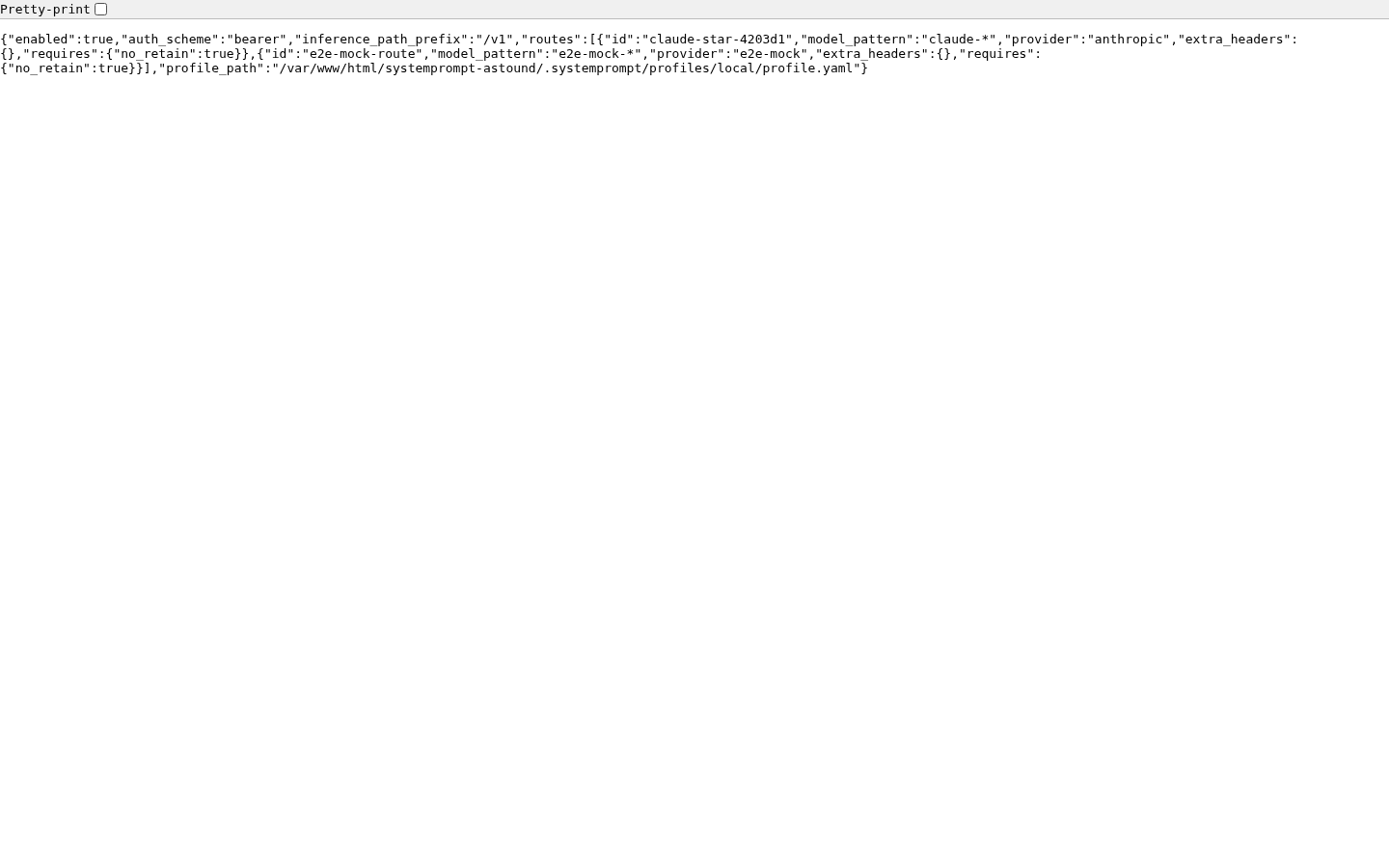

Provider and model YAML carries a governance: block with two booleans: european (data stays in the EU) and no_retain (the provider contractually does not retain prompts or completions). Routes declare what they demand via a requires: block:

providers:
- name: anthropic
  governance:
    european: false
    no_retain: true
gateway:
  routes:
  - model_pattern: claude-*
    provider: anthropic
    requires:
      no_retain: true

Enforcement happens twice:

• At boot — the server refuses to start a route whose provider or model does not satisfy the route's requires: block. A misconfiguration is caught before any traffic flows.
• At dispatch — a request that would land on a non-satisfying provider is denied, with a policy audit row whose descriptor records the failed requires: condition, so the denial is explainable after the fact.

This turns residency and no-retain from convention into a declared, machine-checked property. Classifying data (rather than routes) is planned — see the roadmap.

Verified evidence

Every capability on this page is proven by tagged end-to-end tests run against a seeded instance. To replicate: just start, then just e2e-seed --reset, then the command in the table. Screenshots regenerate with just e2e-screens.

Ref	Verified behaviour	Replicate with
REQ-018	Declarative routing matches on request shape and the RouteSelector seam is exercised	just e2e-req REQ-018
REQ-020	The same client is served by a substituted upstream provider via upstream_model with no application change	just e2e-req REQ-020
REQ-021	A caller without a gateway_route grant is refused with 403, audited, and admitted once the grant is added	just e2e-req REQ-021
REQ-022	PATs honour expiry, are identifiable by prefix, and stop working immediately on revocation	just e2e-req REQ-022
REQ-024	A request for an unlisted model is refused under allow_unlisted_models: false and the refusal is audited	just e2e-req REQ-024
REQ-029	Latency is reported against the configured SLO threshold with breach %, p50, and p95	just e2e-req REQ-029
REQ-033	Quota windows on requests, tokens, and cost enforce per user and per org, with role-tier multipliers	just e2e-req REQ-033
REQ-034	A private OpenAI/Anthropic-compatible endpoint serves traffic as a Backend provider, validated at boot	just e2e-req REQ-034
REQ-037	A route with a requires: block refuses to boot on a non-satisfying provider and denies at dispatch with an audit row	just e2e-req REQ-037
REQ-038	A requires: {no_retain: true} route only ever dispatches to a provider whose governance metadata satisfies it	just e2e-req REQ-038

Deeper protocol-level checks for these behaviours also run in the platform's integration suite (just test-integration).
